Manual Deployment Guide

Deploy Blockscout with a user-friendly UI and all microservices

📗 This guide walks you through a new Blockscout deployment including the user-friendly UI frontend and installation of all microservices. If you'd prefer a more automated approach see the docker-compose deployment page.

A. Prerequisites

Please familiarize yourself with the general requirements, db storage requirements, JSON RPC requirements and Client setting requirements before installing Blockscout.

Minimum Local Hardware Requirements

CPU: 4core / 8core
RAM: 8GB / 16GB / 32GB
DISK: 120gb or 500GB NVME SSD or Standard SSD
OS: Linux, MacOS

Hosting Environment Hardware Requirements

If you are running Blockscout on a cloud server or other remote environment, see the Hardware and Hosting Requirements

Software Dependencies

For Erlang/Elixir, asdf is recommended to install and set the appropriate versions. Note the supported versions for Erlang/Elixir/Node are specified in the .tool-versions file. Additional Instructions for setting up the environment are available for Ubuntu and MacOS.

Dependency

Mac

Linux

brew install erlang

brew install elixir

brew install postgresql

brew install node

brew install automake

brew install libtool

Not Required

Ubuntu - apt-get install inotify-tools

brew install gcc

brew install gmp

Make

sudo apt install makeif Debian 9

G++ Compiler

sudo apt install g++if Debian 9

B. Manual Deployment

The following guide contains 5 sections that cover a complete Blockscout installation.

1. Prepare the backend

1) Clone the repository git clone https://github.com/blockscout/blockscout blockscout-backend

2) Change directories cd blockscout-backend

3) Provide DB URL with your username export DATABASE_URL=postgresql://username:password@localhost:5432/blockscout

Linux: Update the database username and password configuration
Mac: Use logged-in user name and empty password (export DATABASE_URL=postgresql://username:@localhost:5432/blockscout )
Optional: Change credentials in apps/explorer/config/test.exs for test env Example usage: Changing the default Postgres port from localhost:5432 if Boxen is installed.

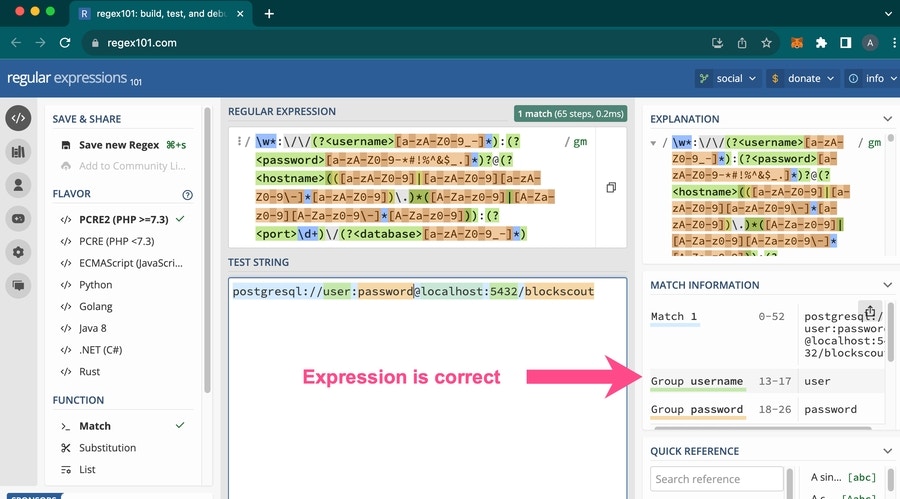

You can check the regex pattern for the db url via https://regex101.com/ with the following regular expression:

\w*:\/\/(?<username>[a-zA-Z0-9_-]*):(?<password>[a-zA-Z0-9-*#!%^&$_.]*)?@(?<hostname>(([a-zA-Z0-9]|[a-zA-Z0-9][a-zA-Z0-9\-]*[a-zA-Z0-9])\.)*([A-Za-z0-9]|[A-Za-z0-9][A-Za-z0-9\-]*[A-Za-z0-9])):(?<port>\d+)\/(?<database>[a-zA-Z0-9_-]*)

4) Install Mix dependencies and compile mix do deps.get, local.rebar --force, deps.compile

5) Generate a new secret_key_base for the DB mix phx.gen.secret

6) Copy keybase and export as an env (for example) export SECRET_KEY_BASE=VTIB3uHDNbvrY0+60ZWgUoUBKDn9ppLR8MI4CpRz4/qLyEFs54ktJfaNT6Z221No

7) Export remaining environment variables as needed.

CLI basic example:

export ETHEREUM_JSONRPC_VARIANT=geth
export ETHEREUM_JSONRPC_HTTP_URL=http://localhost:8545
export API_V2_ENABLED=true
export PORT=3001 # set for local API usage
export COIN=yourcoin
export COIN_NAME=yourcoinname
export DISPLAY_TOKEN_ICONS=true

Notes:

The ETHEREUM_JSONRPC_VARIANT will vary depending on your client (nethermind, geth etc). More information on client settings.
If you're in production environment, please, set MIX_ENV=prod. The current default is MIX_ENV=dev which is a slower and less secure setting. However, for development purposes, unsetting or setting is MIX_ENV=dev is preferred.
To configure “My Account” section on the backend, see https://docs.blockscout.com/for-developers/configuration-options/my-account-settings

8) Compile the application: mix compile

9) If not already running, start Postgres: pg_ctl -D /usr/local/var/postgres start or brew services start postgresql

Check postgres status: pg_isready

10) Create and migrate database mix do ecto.create, ecto.migrate

If you are in dev environment and have run the application previously with a different blockchain, drop the previous database: mix do ecto.drop, ecto.create, ecto.migrate Be careful since this will delete all data from the DB. Don't execute it on production if you don't want to lose all of the data!

11) Install Node.js dependencies

Optional: If preferred, use npm ci rather than npm install to strictly follow all package versions in package-lock.json.

cd apps/block_scout_web/assets; npm install && node_modules/webpack/bin/webpack.js --mode production; cd -

cd apps/explorer && npm install; cd -

12) Build static assets for deployment

mix phx.digest

13) Enable HTTPS in development. The Phoenix server only runs with HTTPS.

cd apps/block_scout_web; mix phx.gen.cert blockscout blockscout.local; cd -

14) Add blockscout and blockscout.local to your /etc/hosts

   127.0.0.1       localhost blockscout blockscout.local

   255.255.255.255 broadcasthost

   ::1             localhost blockscout blockscout.local

If using Chrome, Enable chrome://flags/#allow-insecure-localhost

🎉 This completes the backend setup! Proceed to setup microservices.

2. Run Microservices

You will use Docker to run 4 Rust microservices: smart-contract verification, smart-contract sol2uml visualizer, sig-provider, and stats services. These add additional functionality to your instance once everything is connected.

Prerequisites

Docker v20.10+
Docker-compose 2.x.x+

Commands

Go to the docker-compose directory cd ./blockscout-backend/docker-compose
run docker-compose docker-compose -f microservices.yml up -d

Stats

Stats will be served from http://localhost:8080/
You can check, that service works by requesting http://localhost:8080/health?service=. It should return {"status":"SERVING"}

sig-provider

sig-provider will be at http://localhost:8083/
You can check, that service works by requesting http://localhost:8083/health?service=. It should return {"status":"SERVING"}

Sc-visualizer

A visualizer for smart contracts.

sc-visualizer will be located at http://localhost:8081/
Check the visualizer service works by requesting the http://localhost:8081/health page - it should return {"status":"SERVING"}.

Sc-verifier

A separate smart contract verification service.

sc-verifier will be at http://localhost:8082/.
Check that the sc-verifier service works by requesting http://localhost:8082/api/v2/verifier/solidity/versions page

it should return the list of compilers (click to see the sample response)

{"compilerVersions":["v0.8.23+commit.f704f362","v0.8.22+commit.4fc1097e","v0.8.21+commit.d9974bed","v0.8.20+commit.a1b79de6","v0.8.19+commit.7dd6d404","v0.8.18+commit.87f61d96","v0.8.17+commit.8df45f5f","v0.8.16+commit.07a7930e","v0.8.15+commit.e14f2714","v0.8.14+commit.80d49f37","v0.8.13+commit.abaa5c0e","v0.8.12+commit.f00d7308","v0.8.11+commit.d7f03943","v0.8.10+commit.fc410830","v0.8.9+commit.e5eed63a","v0.8.8+commit.dddeac2f","v0.8.7+commit.e28d00a7","v0.8.6+commit.11564f7e","v0.8.5+commit.a4f2e591","v0.8.4+commit.c7e474f2","v0.8.3+commit.8d00100c","v0.8.2+commit.661d1103","v0.8.1+commit.df193b15","v0.8.0+commit.c7dfd78e","v0.7.6+commit.7338295f","v0.7.5+commit.eb77ed08","v0.7.4+commit.3f05b770","v0.7.3+commit.9bfce1f6","v0.7.2+commit.51b20bc0","v0.7.1+commit.f4a555be","v0.7.0+commit.9e61f92b","v0.6.12+commit.27d51765","v0.6.11+commit.5ef660b1","v0.6.10+commit.00c0fcaf","v0.6.9+commit.3e3065ac","v0.6.8+commit.0bbfe453","v0.6.7+commit.b8d736ae","v0.6.6+commit.6c089d02","v0.6.5+commit.f956cc89","v0.6.4+commit.1dca32f3","v0.6.3+commit.8dda9521","v0.6.2+commit.bacdbe57","v0.6.1+commit.e6f7d5a4","v0.6.0+commit.26b70077","v0.5.17+commit.d19bba13","v0.5.16+commit.9c3226ce","v0.5.15+commit.6a57276f","v0.5.14+commit.01f1aaa4","v0.5.13+commit.5b0b510c","v0.5.12+commit.7709ece9","v0.5.11+commit.22be8592","v0.5.10+commit.5a6ea5b1","v0.5.9+commit.c68bc34e","v0.5.8+commit.23d335f2","v0.5.7+commit.6da8b019","v0.5.6+commit.b259423e","v0.5.5+commit.47a71e8f","v0.5.4+commit.9549d8ff","v0.5.3+commit.10d17f24","v0.5.2+commit.1df8f40c","v0.5.1+commit.c8a2cb62","v0.5.0+commit.1d4f565a","v0.4.26+commit.4563c3fc","v0.4.25+commit.59dbf8f1","v0.4.24+commit.e67f0147","v0.4.23+commit.124ca40d","v0.4.22+commit.4cb486ee","v0.4.21+commit.dfe3193c","v0.4.20+commit.3155dd80","v0.4.19+commit.c4cbbb05","v0.4.18+commit.9cf6e910","v0.4.17+commit.bdeb9e52","v0.4.16+commit.d7661dd9","v0.4.15+commit.8b45bddb","v0.4.14+commit.c2215d46","v0.4.13+commit.0fb4cb1a","v0.4.12+commit.194ff033","v0.4.11+commit.68ef5810","v0.4.10+commit.9e8cc01b"]}

You can also use the Blockscout endpoint for smart-contract verification if you prefer (instructions in the integration section)

To stop all microservices, run docker-compose -f microservices.yml down

To troubleshoot issues with a container, run docker ps to check which containers are not starting.

Check logs with docker logs visualizer -f

3. Add the microservices integration to the backend

Add the microservices env variables to the backend. Use the export command to add.

export MICROSERVICE_SC_VERIFIER_ENABLED=true
export MICROSERVICE_SC_VERIFIER_URL=http://localhost:8082/
export MICROSERVICE_VISUALIZE_SOL2UML_ENABLED=true
export MICROSERVICE_VISUALIZE_SOL2UML_URL=http://localhost:8081/
export MICROSERVICE_SIG_PROVIDER_ENABLED=true
export MICROSERVICE_SIG_PROVIDER_URL=http://localhost:8083/

The Blockscout team also provides an endpoint for smart-contract verification. To use, set the following for the MICROSERVICE_SC_VERIFIER envs

export MICROSERVICE_SC_VERIFIER_ENABLED=true
export MICROSERVICE_SC_VERIFIER_URL=https://eth-bytecode-db.services.blockscout.com/
export MICROSERVICE_SC_VERIFIER_TYPE=eth_bytecode_db

🎉 This completes the microservices setup! Proceed to run the backend and frontend.

4. Run backend

Return to the blockscout-backend directory ./blockscout-backend
Run mix phx.server

The API will be available at http://localhost:3001/api/

5. Run frontend

The frontend can be added to the same high-level directory as the blockscout-backend or a different directory of your choice.

clone the blockscout frontend repository git clone https://github.com/blockscout/frontend blockscout-frontend
change directories cd blockscout-frontend
create a .env file, for example touch .env
Add this minimal set of required env variables (additional variables are available here)

NEXT_PUBLIC_API_HOST=localhost
NEXT_PUBLIC_API_PORT=3001
NEXT_PUBLIC_API_PROTOCOL=http
NEXT_PUBLIC_STATS_API_HOST=http://localhost:8080
NEXT_PUBLIC_VISUALIZE_API_HOST=http://localhost:8081
NEXT_PUBLIC_APP_HOST=localhost
NEXT_PUBLIC_APP_PORT=3000
NEXT_PUBLIC_APP_INSTANCE=localhost
NEXT_PUBLIC_APP_ENV=development
NEXT_PUBLIC_API_WEBSOCKET_PROTOCOL='ws'
NEXT_PUBLIC_WALLET_CONNECT_PROJECT_ID=<your-secret>

install dependencies yarn install
run frontend yarn dev

🎉 Once completed, the frontend should be available at http://localhost:3000

Notes:

To configure the My Account section, you will add additional env variables on the frontend. See https://github.com/blockscout/frontend/blob/main/docs/ENVS.md#my-account
More info related to the frontend is available at: https://github.com/blockscout/frontend/blob/main/docs/CONTRIBUTING.md#local-development

Last updated 7 months ago
