  1. Using Blockscout
  2. Getting Started

Beacon Chain Withdrawal Views

Coming Soon

Last updated 10 months ago

Was this helpful?

Validator withdrawals will soon be activated on the Ethereum mainnet with the Shanghai/Capella hardfork (), and Blockscout will provide views for partial and full withdrawals.

Withdrawals are akin to simple transactions (though they are actually 0 gas balance increases) included in the block structure. Coins are transferred from a validator to a preset withdrawal address (either EOA or contract). Each withdrawal also includes a unique integer index starting from 0 and incrementing by 1 with each withdrawal.

The unique index, assigned validatorIndex, withdrawal receiving address, and amount are all included in the withdrawals structure and will be displayed on Blockscout on the block and addresses pages.

 "withdrawals": [
            {
                "index": "0xbd8d0",
                "validatorIndex": "0x81e",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8d1",
                "validatorIndex": "0x81f",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
        ],
Example block with withdrawal struct
{
    "jsonrpc": "2.0",
    "id": 1,
    "result": {
        "baseFeePerGas": "0x7",
        "difficulty": "0x0",
        "extraData": "0x",
        "gasLimit": "0x1c9c380",
        "gasUsed": "0x0",
        "hash": "0x5262de0c24b0cab3fdc32fadda1904f4698ab0b12d505bf733cf47cb3e60f7f7",
        "logsBloom": "0x00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000",
        "miner": "0xf97e180c050e5ab072211ad2c213eb5aee4df134",
        "mixHash": "0x08471cc3dbac65574f049af479631af782cf31c841710640ed615dc50670b378",
        "nonce": "0x0000000000000000",
        "number": "0xd62f",
        "parentHash": "0xdabf9e7ebfad879ad44270c2a7a5ff8e848e72316def4d5b0305f2a1216089f7",
        "receiptsRoot": "0x56e81f171bcc55a6ff8345e692c0f86e5b48e01b996cadc001622fb5e363b421",
        "sha3Uncles": "0x1dcc4de8dec75d7aab85b567b6ccd41ad312451b948a7413f0a142fd40d49347",
        "size": "0x465",
        "stateRoot": "0x9f2a690353b6d8cfa75cb12347104f42d38463471cda1293696a6c3b685aa839",
        "timestamp": "0x63af29e4",
        "totalDifficulty": "0x1",
        "transactions": [],
        "transactionsRoot": "0x56e81f171bcc55a6ff8345e692c0f86e5b48e01b996cadc001622fb5e363b421",
        "uncles": [],
        "withdrawals": [
            {
                "index": "0xbd8d0",
                "validatorIndex": "0x81e",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8d1",
                "validatorIndex": "0x81f",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8d2",
                "validatorIndex": "0x820",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8d3",
                "validatorIndex": "0x821",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8d4",
                "validatorIndex": "0x822",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8d5",
                "validatorIndex": "0x823",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8d6",
                "validatorIndex": "0x824",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x651c03f6de00"
            },
            {
                "index": "0xbd8d7",
                "validatorIndex": "0x825",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8d8",
                "validatorIndex": "0x826",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8d9",
                "validatorIndex": "0x827",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8da",
                "validatorIndex": "0x828",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x1a2950b4af800"
            },
            {
                "index": "0xbd8db",
                "validatorIndex": "0x829",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8dc",
                "validatorIndex": "0x82a",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8dd",
                "validatorIndex": "0x82b",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8de",
                "validatorIndex": "0x82c",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            },
            {
                "index": "0xbd8df",
                "validatorIndex": "0x82d",
                "address": "0xe7c180eada8f60d63e9671867b2e0ca2649207a8",
                "amount": "0x6dcf0a644000"
            }
        ],
        "withdrawalsRoot": "0xb28f757020474ee478a03be8ca4a2efaa7ebddbf565129bb08202ce9a8670d44"
    }
}

UI display examples

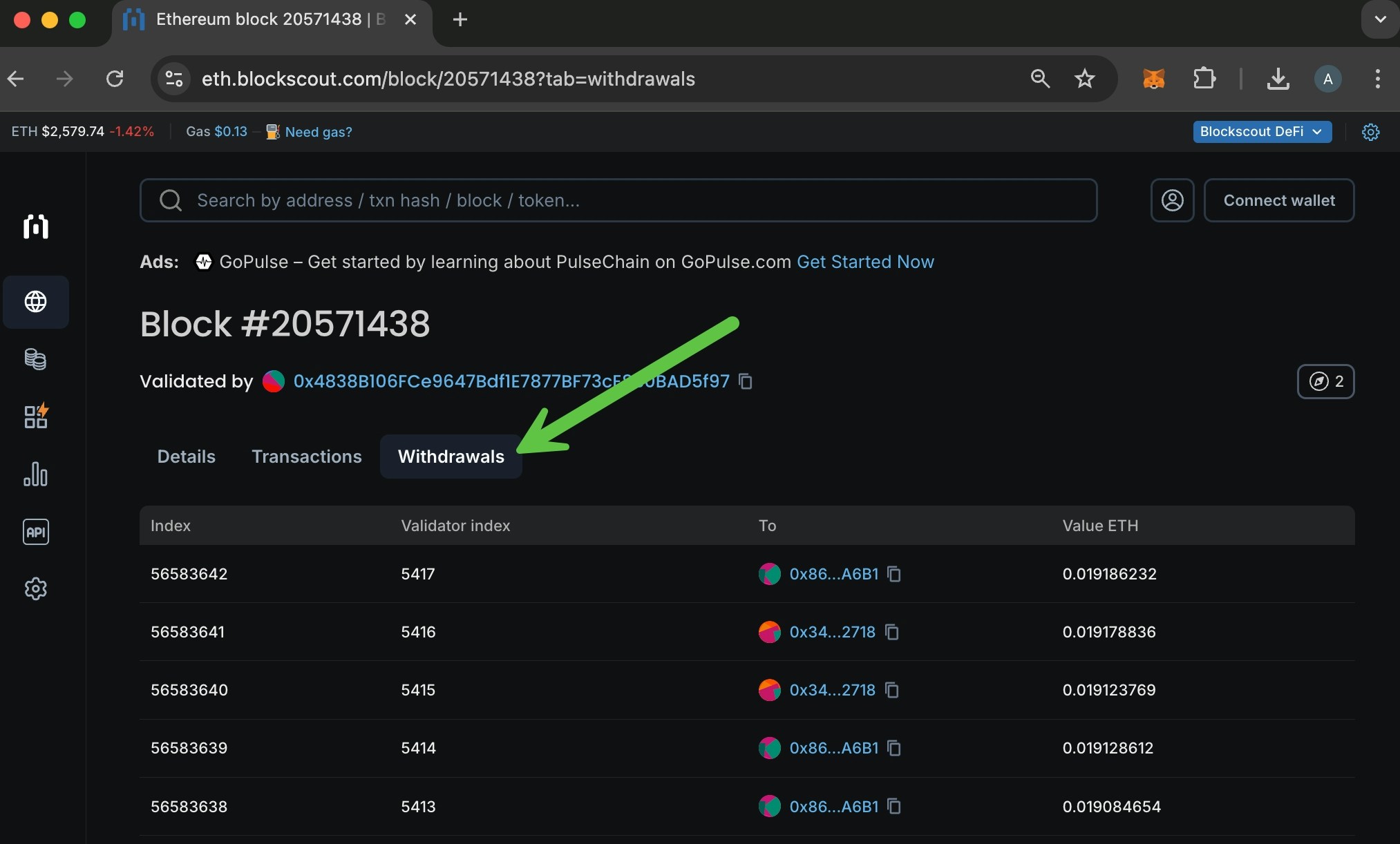

Block page example

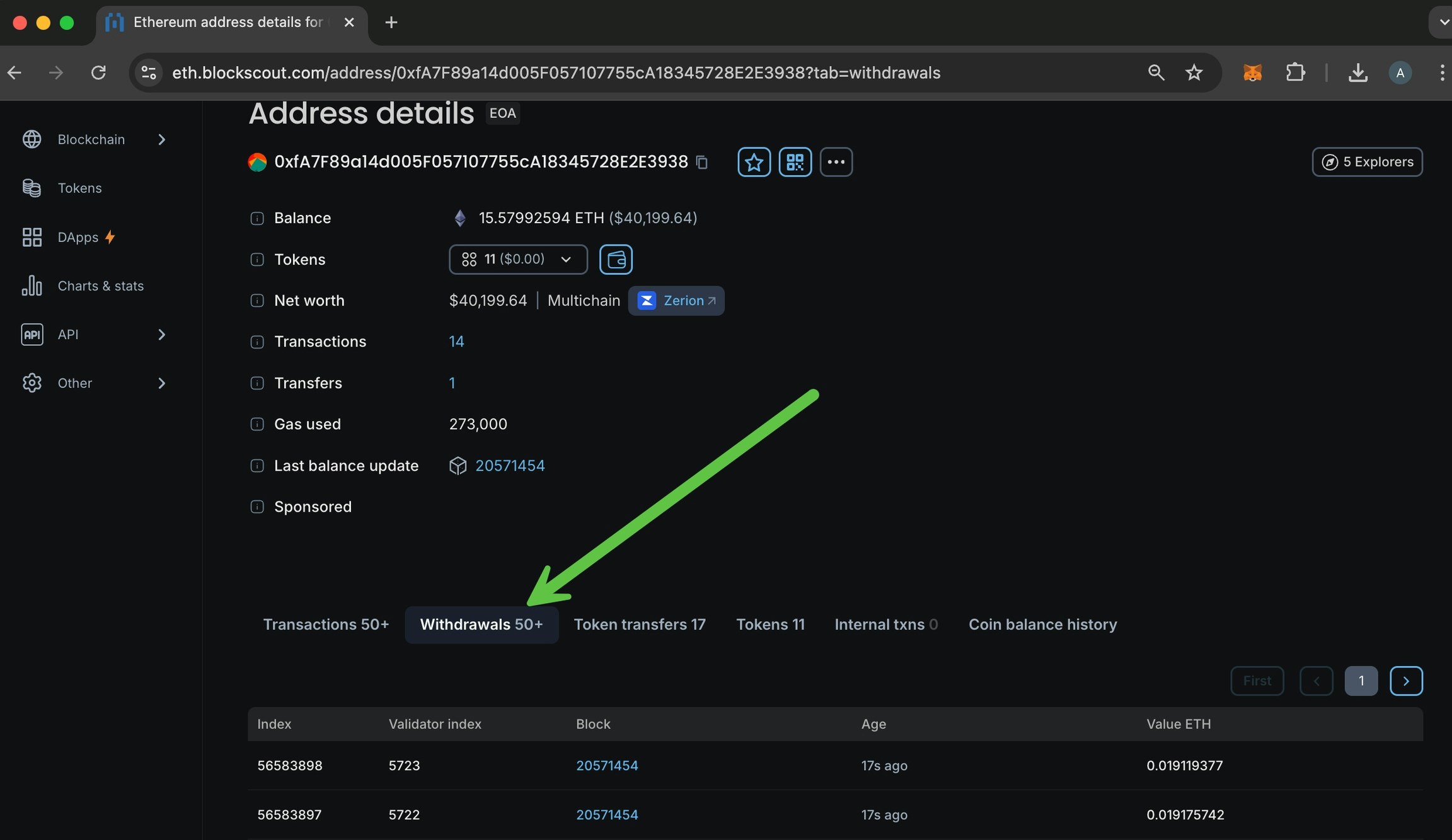

Address page example

🙎
EIP-4895
